I have many older general MIDI keyboards. When I was setting up my new studio I needed to convert them to USB MIDI. The MIDI-TO-USB converter project was born.
midi to usb converter 1

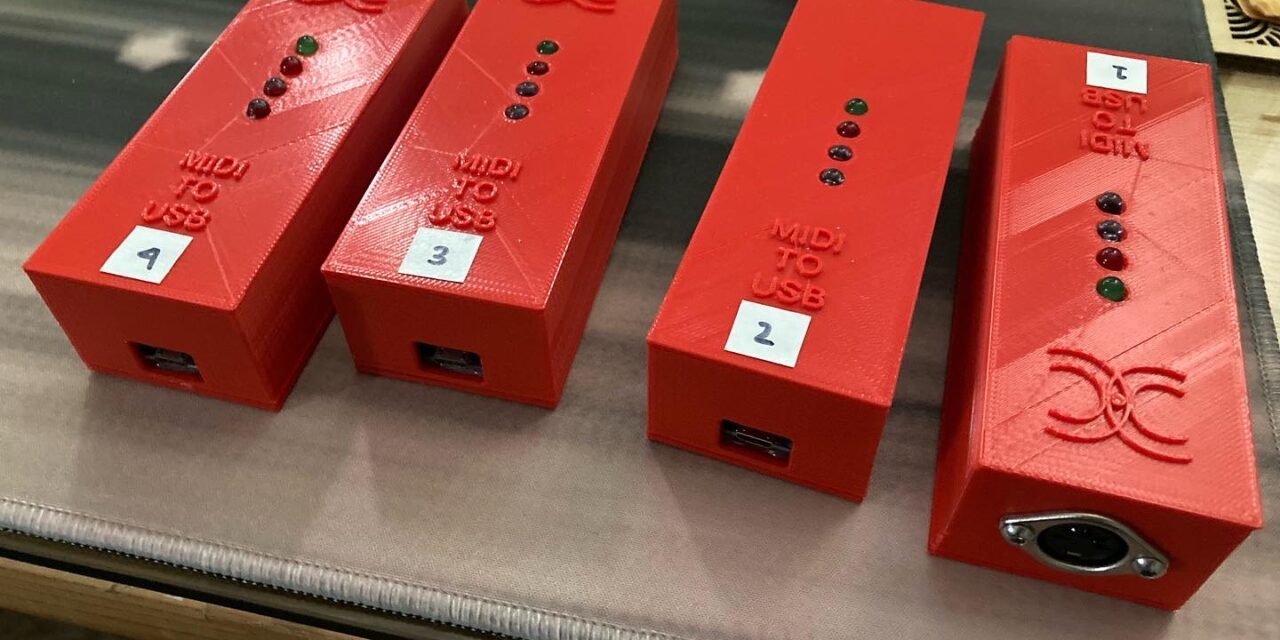

four finished midi-to-usb converters
midi to usb converter 2
breadboarding the first circuit to test if it works
midi to usb converter 3
all the parts needed to assemble a unit
midi to usb converter 4
top view of the soldered circuit in the 3d printed enclosure
midi to usb converter 5
bottom view of the circuit inside the 3d printer enclosure before the bottom plate is installed
midi to usb converter 6
3D printed housing back plate
midi to usb converter 7
3D printed housing designed in Fusion 360
